Metal Wire / Cable Torsion Strength Testing Machine , Automatic Cable Tester

Product Categories

Dongguan Zhongli Instrument Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : ZL

Model Number : ZL-2112

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C, Western Union,

Supply Ability : 100 set per month

Delivery Time : 10-15 days

Packaging Details : Packaged within wooden case

Power : 220v 50hz

Two plus head gauge : 350mm; 500mm

Jaw clamp specific diameter : 74mm; 65mm

Reverse speed : 60; 90; 120; 180; 300 rpm / 30; 60; 90; 120 rpm

Jaw hardness (HRC) : From 50 to 65

Warranty : 12 month

Contact Now

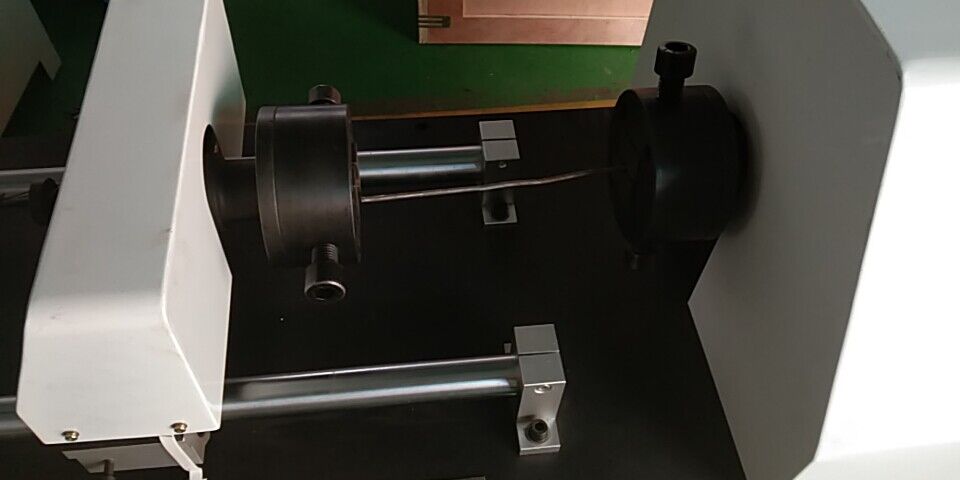

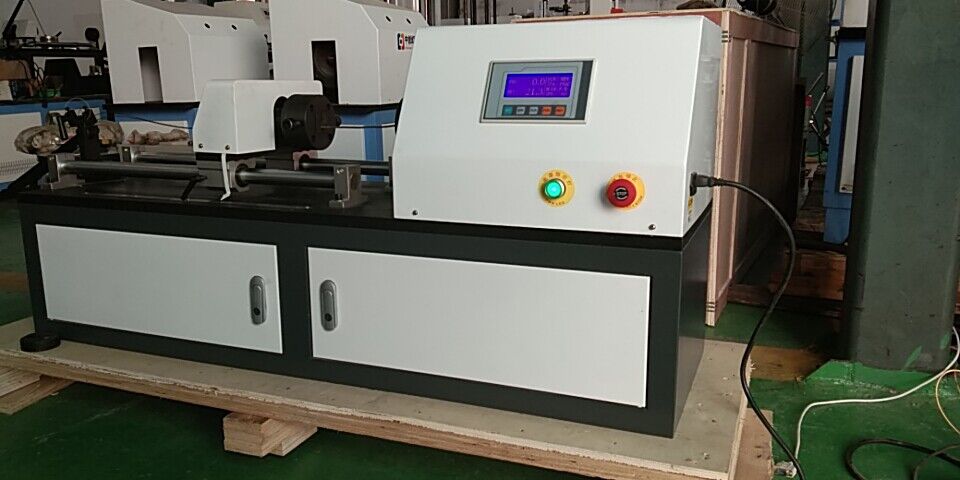

Automatic metal wire / cableTorsion Strength Testing machine

The main purposes:

Automatic Wire and Cable Torsion Tester is suitable for the determination of diameter (or feature size) for metal

wire 0.1-10.0mm under the plastic deformation ability and display defects of wire surface and interior in

one-way or two-way torsion.

Main technical parameters:

Product Name	Automatic Wire and Cable Torsion Strength Tester
Working mode	Automatic loading
Display mode	Chinese characters LCD menu display
Diameter of wire rod	0.1mm-1mm, 1mm-3mm; 1mm-6mm, 1mm-10mm
Two plus head gauge	350mm; 500mm
Jaw clamp specific diameter	74mm; 65mm
Flat jaw clamping range	0-3mm
The 1 round jaw clamping range	3-6mm
The 2 round jaw clamping range	6-10mm
Reverse speed	60; 90; 120; 180; 300 rpm / 30; 60; 90; 120 rpm
The velocity error	< + 10%
The minimum number of reading circle	0.1
Two chuck concentricity (mm)	< 0.4
The rail moving parallel degree (mm)	< 0.2
Jaw hardness (HRC)	From 50 to 65
Size(length * width * height)	980 x 400 x 600 mm;1360mm "430mm" 600mm
Test weight	100-200KG
Power supply	220V 50HZ
Noise	< 50 dB (A);< 70 dB (A)
Quality of assembly	In accordance with the national standard GB/T2611
Packaging	With the machinery of the standard JB/T 614
