Food Processing Metal Detector Conveyor Belt Metal Detector for Industry

Brand Name : ZL

Model Number : ZL-4001

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1 set

Price : 2800-3500

Payment Terms : L/C,T/T,Western Union

Supply Ability : 50 sets / month

Delivery Time : 7-14 work days

Packaging Details : Conveyor Belt Food Metal Detection Machine is packaged within wooden case.

Product name : Food Processing Metal Detector Conveyor Belt Metal Detector for Industry

Size : 100-120-150-200-250-300-350-400-customize

FE Sensitivity : 0.6-3.0-customize

Non-Fe Sensitivity : 1.2-3.5-customize

SUS Sensitivity : 1.5-4.0-customize

Speed : 10-30 m/min optional (default constant speed)

Machine Weight : About 200～250KG

Certificate : CE

Contact Now

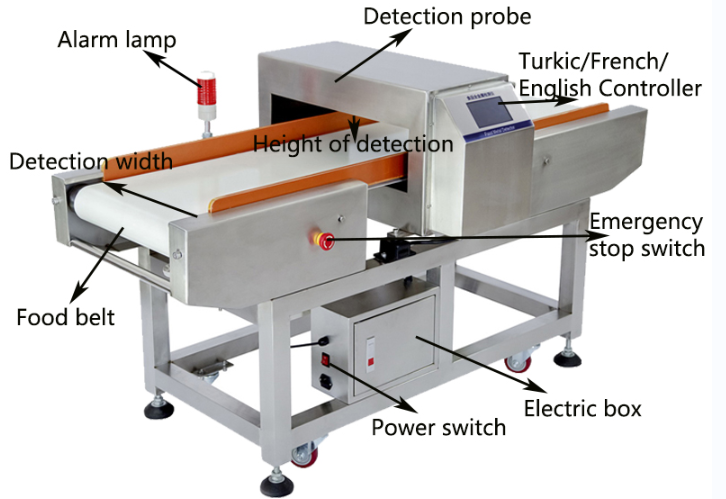

Food Processing Metal Detector Conveyor Belt System

This high-precision metal detector is engineered to detect all metal foreign objects in industrial processing environments. Designed in compliance with European and American safety standards, the machine meets food machinery requirements and integrates seamlessly with assembly line inspection operations.

Industry Applications

Suitable for detecting metal impurities in various products and raw materials during production and processing across multiple industries:

Food processing and packaging
Pharmaceutical manufacturing
Toys, clothing, and footwear production
Chemical industry applications
Leather and knitting manufacturing

Detects both ferrous and non-ferrous metals including iron, copper, aluminum, stainless steel, and other common metallic contaminants.

Technical Specifications

Model Configuration

SIZE	ZL-4001B
Available Models	4010 \| 4012 \| 4015 \| 4020 \| 4025 \| 4030 \| 4035 \| 4040
Detection Width	400mm (Other widths can be customized)
Detection Height	100 \| 120 \| 150 \| 200 \| 250 \| 300 \| 350 \| 400mm

Detection Sensitivity

Material Type	Sensitivity (Ф mm)
FE (Ferrous Metals)	≥0.6 \| ≥0.8 \| ≥1.0 \| ≥1.2 \| ≥1.5 \| ≥2.0 \| ≥2.5 \| ≥3.0
Non-Fe (Non-Ferrous)	≥1.2 \| ≥1.2 \| ≥1.5 \| ≥1.8 \| ≥2.0 \| ≥2.5 \| ≥3.0 \| ≥3.5
SUS (Stainless Steel)	≥1.5 \| ≥1.8 \| ≥2.0 \| ≥2.3 \| ≥2.5 \| ≥3.0 \| ≥3.5 \| ≥4.0

Operating Specifications

Alarm Method	Automatic shutdown with 12V buzzer alarm and rewind function when metal detected
Machine Size	13307201000mm (LWH) - customizable to actual requirements
Belt Material	Food grade PVC Belt (Food grade PU Belt available for direct food contact)
Speed	10-30 m/min optional (default constant speed)
Machine Weight	Approximately 200-250KG
Power Requirements	220V 50Hz, 120W (customizable)
Load Capacity	Within 20KG (customizable)
Belt Height from Ground	700mm (other heights customizable)

Advanced Features

Storage Function: 99 product profiles with 990,000 data points capacity
Optional 7-inch touch screen with USB interface for data export
Optional rejection systems: duplicates, push rods, and air blow mechanisms

Note: Sensitivity parameters are approximate values from empty machine testing. Actual test parameters may vary depending on the specific test object and operating conditions.
